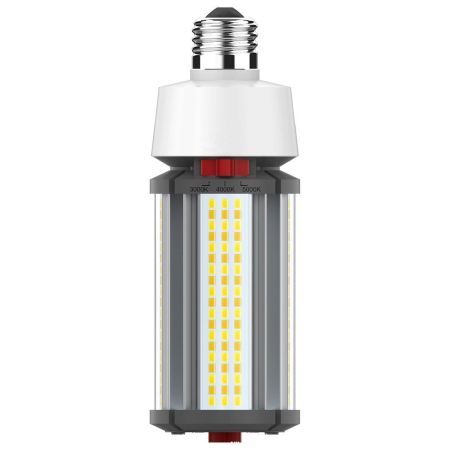

Satco - LED Replacement for HID Lamp - 16W, 18W, 22W - 3000K, 4000K, 5000K Light Color - 22W/LED/CCT/100-277V/E26 [S23147]
Quick Details
- Brand: Satco
- Color Temperature: 3000K, 4000K, 5000K
- CRI: 80
- Wattage: 16W, 18W, 22W
- Voltage: 100-277
- Base: E26 (Medium)
- Dimmable: Yes
- Life Rating: 50000 Hours
- Lumens: 2240L, 2520L, 3080L
This product is a compatible replacement for:
Color Temperature, also known as Correlated Color Temperature or CCT, is a scale that helps describe how warm or cool light is. Light on the warm end of the spectrum is more yellow or orange like a candle. Light on the cool end of the spectrum is more blue like a sunny day.
We've grouped products into color temperature groups to help make finding the right product a little easier.
For a more detailed explanation of color temperature and how to choose the right color for your application, this is a helpful article
Color Rendering Index (CRI) is a specification used in lighting to help determine the quality of the light produced by a bulb. CRI is a number between 0 and 100, and the closer to 100, the better color should look under the light.
CRI is an approximation, so if color quality is critical for your lighting application, review this article
Pairing the voltage rating for a product with the voltage of the electrical system is important to ensure safety and compatibility.
Dimmable products allow you to pair the product with a dimmer switch to smoothly lower the amount of light produced by a bulb or fixture.
LED Replacement for HID Lamp; Wattage Selectable (22W/18W/16W); CCT Selectable (3000K, 4000K, 5000K); Lumens (3080L/2520L/2240L); Ballast Bypass (Type B); 100V - 277V; ColorQuick Technology; PowerQuick Technology; Enclosed Fixture Rated; Damp Location Rated; Built In 4kV Surge Protection
MANUFACTURER INFORMATION |
|
| TYPE | LED Replacement for HID Lamp |
|---|---|
| SKU | 22W/LED/CCT/100-277V/E26 [S23147] |
| SUPPLIER PART NUMBER | S23147 |
| CATALOG NUMBER | S23147 |
| BRAND | Satco |
| CASE QUANTITY | 12 |
| LIFE RATING | 50000 hrs. |
LIGHT CHARACTERISTICS |
|
| LIGHT TECHNOLOGY | LED |
| WATTAGE | 16W, 18W, 22W |
| INCANDESCENT EQUIVALENT WATTAGE | 100W |
| HID EQUIVALENT WATTAGE | 50W, 70W, 100W |
| CRI (COLOR RENDERING INDEX) | 80 |
| COLOR TEMPERATURE | 3000K, 4000K, 5000K |
| LIGHT OUTPUT (LUMENS) | 2240L, 2520L, 3080L |
| BEAM TYPE | Omnidirectional |
| BEAM ANGLE OR DESCRIPTION | 300 |
| DIMMABLE | Yes |
ELECTRICAL REQUIREMENTS |
|
| VOLTAGE | 100-277 |
| INPUT VOLTAGE | 100-277 |
COMPATIBILITY |
|
| RETROFIT TYPE | Type B (Ballast Bypass) |
| LAMP ORIENTATION | Universal |
SHAPE & DIMENSIONS |
|
| SHAPE | Post Top / Corncob |
| BASE TYPE | E26 (Medium) |
| LENGTH | 6.89 in. |
MATERIAL & FINISH |
|
| FINISH | White |
COMPLIANCE |
|
| CALIFORNIA STATUS | Compliant (Purchasable) |
| COLORADO STATUS | Compliant (Purchasable) |
| HAWAII STATUS | Compliant (Purchasable) |
| ILLINOIS STATUS | Compliant (Purchasable) |
| MAINE STATUS | Compliant (Purchasable) |
| MARYLAND STATUS | Compliant (Purchasable) |
| MASSACHESETTS STATUS | Compliant (Purchasable) |
| MINNESOTA STATUS | Compliant (Purchasable) |
| NEVADA STATUS | Compliant (Purchasable) |
| NEW JERSEY STATUS | Compliant (Purchasable) |
| NEW YORK STATUS | Compliant (Purchasable) |
| OREGON STATUS | Compliant (Purchasable) |
| RHODE ISLAND STATUS | Compliant (Purchasable) |
| VERMONT STATUS | Compliant (Purchasable) |
| WASHINGTON STATUS | Compliant (Purchasable) |
| WASHINGTON DC STATUS | Compliant (Purchasable) |
