Satco - LED 2x4 Flat Panel Fixture - 30W, 40W, 50W - 3000K, 4000K, 5000K Light Color - 65-572R1 [SAT]
Quick Details
- Brand: Satco
- Color Temperature: 3000K, 4000K, 5000K
- CRI: 80
- Wattage: 30W, 40W, 50W
- Dimmable: Yes
- Life Rating: 50000 Hours
- Lumens: 3300L - 5750L
This product is a compatible replacement for:
- 65-572 [SAT]
Color Temperature, also known as Correlated Color Temperature or CCT, is a scale that helps describe how warm or cool light is. Light on the warm end of the spectrum is more yellow or orange like a candle. Light on the cool end of the spectrum is more blue like a sunny day.
We've grouped products into color temperature groups to help make finding the right product a little easier.
For a more detailed explanation of color temperature and how to choose the right color for your application, this is a helpful article
Color Rendering Index (CRI) is a specification used in lighting to help determine the quality of the light produced by a bulb. CRI is a number between 0 and 100, and the closer to 100, the better color should look under the light.
CRI is an approximation, so if color quality is critical for your lighting application, review this article
Dimmable products allow you to pair the product with a dimmer switch to smoothly lower the amount of light produced by a bulb or fixture.

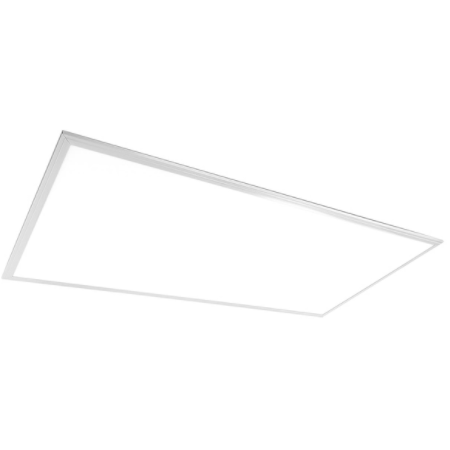

2X4 Backlit LED Flat Panel Light Fixture; Wattage Selectable (30W, 40W, 50W); CCT Selectable (3500K, 4000K, 5000K); Lumen Range 3300 - 5750; 0-10V Dimming; Damp Location Rated; IP20 Rating; The SATCO|NUVO LED Backlit Panel fixtures feature our new ColorQuick and PowerQuick technologies in a variety of sizes. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at the time of installation, making these fixtures extremely functional. Using an advanced manufacturing process, even light distribution is achieved using high quality optic materials. The use of a flicker free driver reduces strobing, generating comfortable light that is suitable for long-term task usage. Ideal for offices, retail, education and hospitality locations, these panels offer versatility and efficiency with a long, maintenance free life.
MANUFACTURER INFORMATION |
|
| TYPE | LED 2x4 Flat Panel Fixture |
|---|---|
| SKU | 65-572R1 [SAT] |
| SUPPLIER PART NUMBER | 65-572R1 |
| CATALOG NUMBER | 65-572R1 |
| BRAND | Satco |
| LIFE RATING | 50000 hrs. |
LIGHT CHARACTERISTICS |
|
| WATTAGE | 30W, 40W, 50W |
| CRI (COLOR RENDERING INDEX) | 80 |
| COLOR TEMPERATURE | 3000K, 4000K, 5000K |
| LIGHT OUTPUT (LUMENS) | 3300L - 5750L |
| BEAM ANGLE OR DESCRIPTION | 120 |
| DIMMABLE | Yes |
ELECTRICAL REQUIREMENTS |
|
| INPUT VOLTAGE | 100-277 |
SHAPE & DIMENSIONS |
|
| HEIGHT | 1.5 in. |
| LENGTH | 47.72 in. |
| WIDTH | 23.75 in. |
MATERIAL & FINISH |
|
| MATERIAL | Aluminum and Steel Housing / PMMA Lens |
| FINISH | White |
COMPLIANCE |
|
| CALIFORNIA STATUS | Compliant (Purchasable) |
| COLORADO STATUS | Compliant (Purchasable) |
| HAWAII STATUS | Compliant (Purchasable) |
| ILLINOIS STATUS | Compliant (Purchasable) |
| MAINE STATUS | Compliant (Purchasable) |
| MARYLAND STATUS | Compliant (Purchasable) |
| MASSACHESETTS STATUS | Compliant (Purchasable) |
| MINNESOTA STATUS | Compliant (Purchasable) |
| NEVADA STATUS | Compliant (Purchasable) |
| NEW JERSEY STATUS | Compliant (Purchasable) |
| NEW YORK STATUS | Compliant (Purchasable) |
| OREGON STATUS | Compliant (Purchasable) |
| RHODE ISLAND STATUS | Compliant (Purchasable) |
| VERMONT STATUS | Compliant (Purchasable) |
| WASHINGTON STATUS | Compliant (Purchasable) |
| WASHINGTON DC STATUS | Compliant (Purchasable) |
