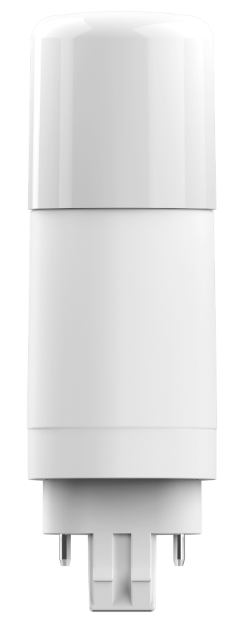

Eiko - LED Replacement for CFL Lamp (2-Pin) - 7 Watt - 2700K Light Color - L7WPLS/AB/827/U/GX23/O EIKO [14614]
Quick Details
- Brand: Eiko
- Color Temperature: 2700K
- CRI: 80
- Wattage: 7 Watt
- Voltage: 120-277
- Base: GX23 (2 Pin)
- Dimmable: No
- Life Rating: 50000 Hours
- Lumens: 780L
This product is a compatible replacement for:
Color Temperature, also known as Correlated Color Temperature or CCT, is a scale that helps describe how warm or cool light is. Light on the warm end of the spectrum is more yellow or orange like a candle. Light on the cool end of the spectrum is more blue like a sunny day.
We've grouped products into color temperature groups to help make finding the right product a little easier.
For a more detailed explanation of color temperature and how to choose the right color for your application, this is a helpful article
Color Rendering Index (CRI) is a specification used in lighting to help determine the quality of the light produced by a bulb. CRI is a number between 0 and 100, and the closer to 100, the better color should look under the light.
CRI is an approximation, so if color quality is critical for your lighting application, review this article
Pairing the voltage rating for a product with the voltage of the electrical system is important to ensure safety and compatibility.
Dimmable products allow you to pair the product with a dimmer switch to smoothly lower the amount of light produced by a bulb or fixture.
The Eiko 14614 is a 7-watt LED lamp designed for commercial lighting applications requiring reliable, energy-efficient illumination. It features a Gx23 (2 Pin) base and provides 780 lumens of warm white light at 2700K color temperature. The lamp offers a universal orientation and is rated for 50,000 hours of service life, suitable for various commercial environments including retail stores, warehouses, and office spaces. Its plastic housing with an omnidirectional beam angle ensures effective light dispersion while maintaining durability. The lamp works on magnetic ballast or direct line voltage and is non-dimmable, making it suitable for various lighting controls that do not require dimming capabilities.
This product description was generated with the help of AI.
MANUFACTURER INFORMATION |
|
| TYPE | LED Replacement for CFL Lamp (2-Pin) |
|---|---|
| SKU | L7WPLS/AB/827/U/GX23/O EIKO [14614] |
| CATALOG NUMBER | 14614 |
| BRAND | Eiko |
| CASE QUANTITY | 24 |
| LIFE RATING | 50000 hrs. |
LIGHT CHARACTERISTICS |
|
| LIGHT TECHNOLOGY | LED |
| WATTAGE | 7 Watt |
| FLUORESCENT EQUIVALENT WATTAGE | 13W |
| CRI (COLOR RENDERING INDEX) | 80 |
| COLOR TEMPERATURE | 2700K |
| LIGHT OUTPUT (LUMENS) | 780L |
| BEAM TYPE | Omnidirectional |
| BEAM ANGLE OR DESCRIPTION | 300 |
| DIMMABLE | No |
ELECTRICAL REQUIREMENTS |
|
| VOLTAGE | 120-277 |
| INPUT VOLTAGE | 120-277 VAC |
COMPATIBILITY |
|
| RETROFIT TYPE | Type A+B (Ballast Dependent or Bypass) |
| LAMP ORIENTATION | Universal |
SHAPE & DIMENSIONS |
|
| SHAPE | PL-S/DS (Single Tube) |
| BASE TYPE | GX23 (2 Pin) |
| DIAMETER | 1.27 in. |
| LENGTH | 4.70 in. |
| WIDTH | 1.27 in. |
MATERIAL & FINISH |
|
| MATERIAL | Plastic |
COMPLIANCENote: State compliance is only listed for states with an active restriction. If a state is not listed below, there are no applicable regulations. |
|
| CALIFORNIA STATUS | Compliant (Purchasable) |
| COLORADO STATUS | Compliant (Purchasable) |
| HAWAII STATUS | Compliant (Purchasable) |
| ILLINOIS STATUS | Compliant (Purchasable) |
| MAINE STATUS | Compliant (Purchasable) |
| MARYLAND STATUS | Compliant (Purchasable) |
| MASSACHESETTS STATUS | Compliant (Purchasable) |
| MINNESOTA STATUS | Compliant (Purchasable) |
| NEVADA STATUS | Compliant (Purchasable) |
| NEW JERSEY STATUS | Compliant (Purchasable) |
| NEW YORK STATUS | Compliant (Purchasable) |
| OREGON STATUS | Compliant (Purchasable) |
| RHODE ISLAND STATUS | Compliant (Purchasable) |
| VERMONT STATUS | Compliant (Purchasable) |
| WASHINGTON STATUS | Compliant (Purchasable) |
| WASHINGTON DC STATUS | Compliant (Purchasable) |
